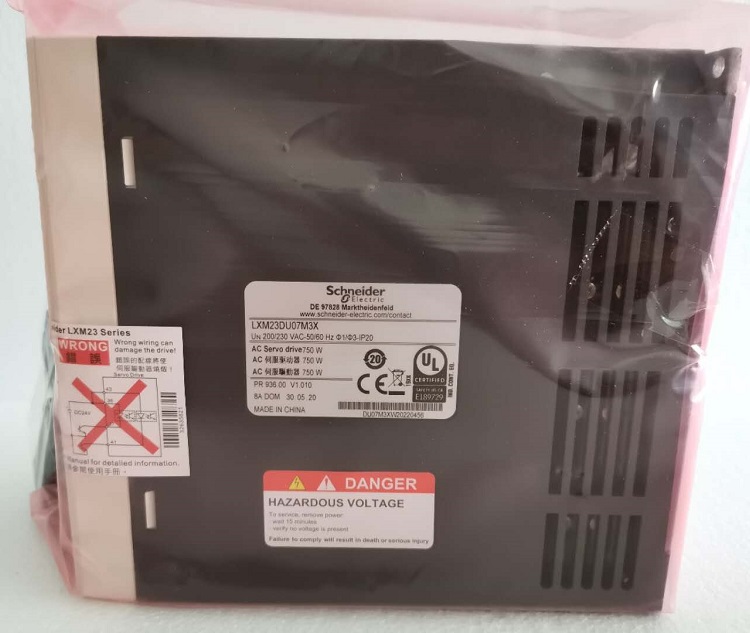

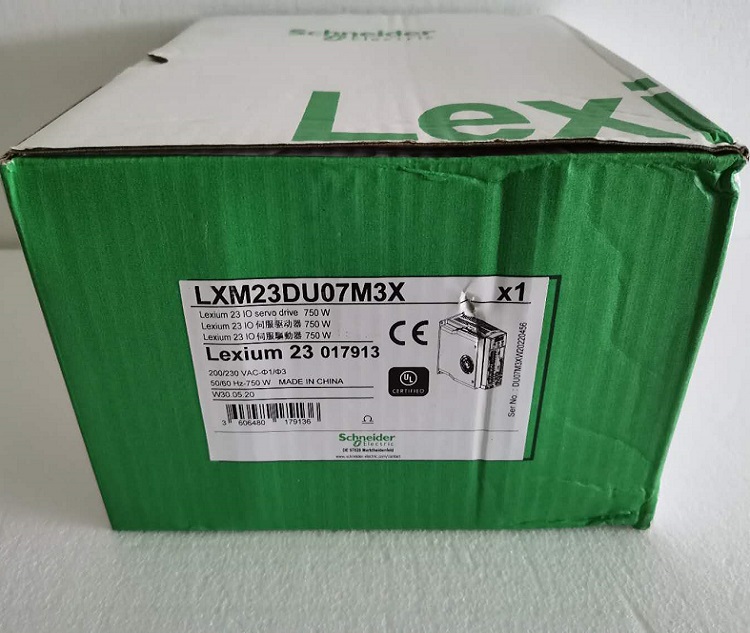

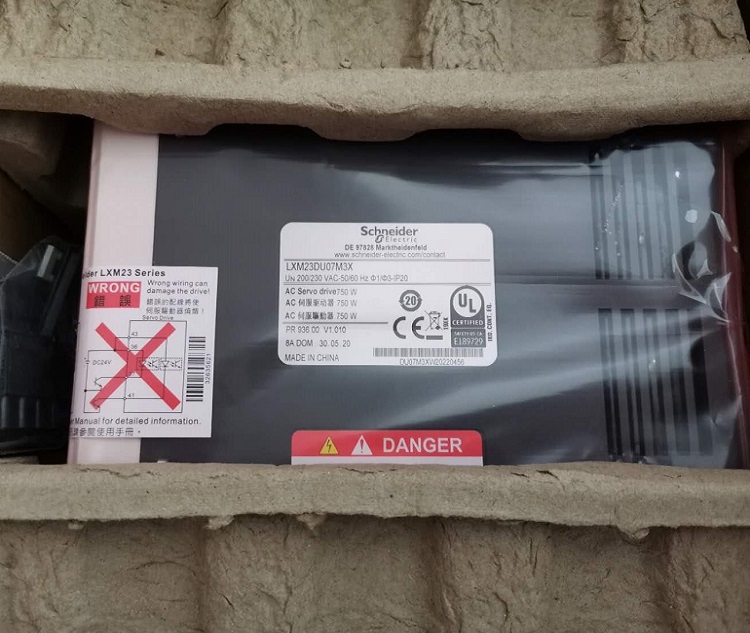

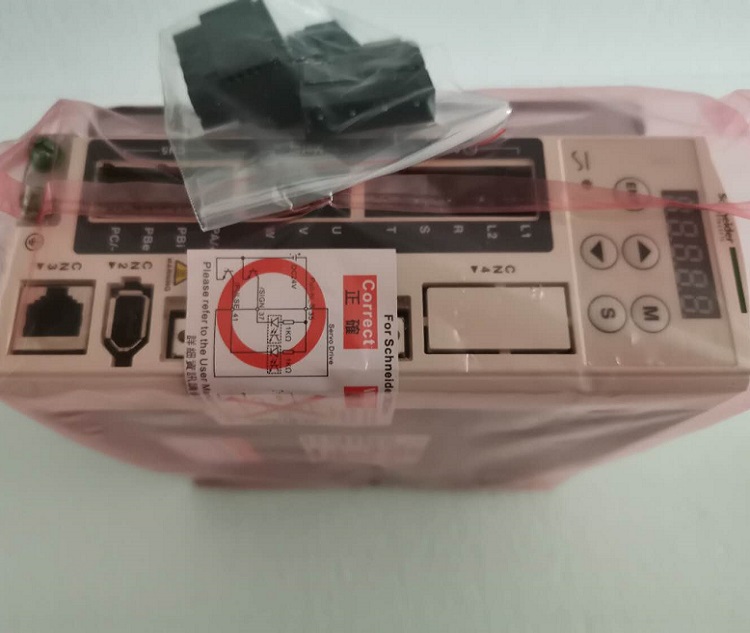

Schneider electric LXM23DU07M3X Lexium 23 IO 750w servo drive
product description
range of product | Lexium 23 Plus | |
---|---|---|
product or component type | Motion servo drive | |
device short name | LXM23 |
format of the drive | Book | |
---|---|---|
network number of phases | 3 phases Single phase | |
[Us] rated supply voltage | 220 V single phase (tolerance: - 10...15 %) 220 V 3 phases (tolerance: - 20...15 %) | |
supply voltage limits | 200…255 V single phase 170…255 V 3 phases | |
supply frequency | 50/60 Hz - 5...5 % | |
network frequency limits | 47.5…63 Hz | |
continuous output current | 5.1 A | |
continuous power | 750 W at 220 V | |
nominal power | 0.75 kW at 220 V | |
maximum leakage current | 3.5 mA | |
output voltage | <= power supply voltage | |
electrical isolation | Between power and control | |
type of cable | Twisted shielded pairs cable (single or double) (temperature: 0…55 °C) | |
electrical connection | Terminal, clamping capacity: 1.3 mm², AWG 16 (L1-L2) Terminal, clamping capacity: 2.1 mm², AWG 14 (R, S, T) Terminal, clamping capacity: 0.82 mm², AWG 18 (U, V, W) Terminal, clamping capacity: 2.1 mm², AWG 14 (PA/+, PBe) | |
tightening torque | PE (ground): 1.4 N.m | |
discrete input number | 8 programmable discrete input(s) | |
discrete input type | Programmable (CN1 terminals) | |
discrete input voltage | 12...24 V DC for logic | |
discrete input logic | Positive or negative (CN1) | |
discrete output number | 5 | |
discrete output type | Logic output(s) (CN1)12...24 V DC | |
discrete output voltage | 12...24 V DC | |
discrete output logic | Positive or negative (CN1) | |
analogue input number | 2 | |
absolute accuracy error | 0.01 % | |
analogue input type | V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm T_REF voltage analog input: - 10...10 V, impedance: 10 kOhm | |
control signal type | Servo motor encoder feedback | |
protection type | Against reverse polarity: inputs signal Against short-circuits: outputs signal Overcurrent: motor Overvoltage: motor Undervoltage: motor Overheating: motor Overload: motor Overspeed: motor Abnormal pulse control command: drive | |
communication interface | Modbus, integrated | |
connector type | RJ45 (CN3) for Modbus | |
method of access | Slave | |
physical interface | 2-wire RS485 multidrop for Modbus | |
transmission rate | Configurable | |
status LED | 1 LEDcharge LED: | |
signalling function | Servo status and fault codes five 7-segment display units | |
marking | CE | |
type of cooling | Integrated fan | |
operating position | Vertical | |
width | 85 mm | |
height | 162 mm | |
depth | 180 mm | |
net weight | 2.2 kg |
EMC filter | Without EMC filter | |
---|---|---|
electromagnetic compatibility | EMC immunity level 3 conforming to EN/IEC 61000-4-2 EMC immunity level 3 conforming to EN/IEC 61000-4-3 EMC immunity level 3 conforming to EN/IEC 61000-4-5 EMC immunity level 4 conforming to EN/IEC 61000-4-4 EMC immunity with additional EMC filter conforming to EN/IEC 61800-3 environments 1 and 2 Conducted and radiated emissions with additional EMC filter conforming to EN/IEC 61800-3 environments 1 and 2 category C2, C3 | |
standards | EN/IEC 61800-5-1 | |
product certifications | C-Tick CULus 508 | |
IP degree of protection | On upper part: IP20 (without protective cover) On upper part: IP41 (with protective cover) | |
vibration resistance | 0.075 mm peak to peak (f= 10…57 Hz) conforming to IEC 60068-2-6 1 gn (f= 57…150 Hz) conforming to IEC 60068-2-6 | |
shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 | |
relative humidity | Class 3K3 (5 to 85 %) without condensation or dripping water conforming to IEC 60721-3-3 | |
ambient air temperature for operation | 0…55 °C conforming to UL | |
ambient air temperature for storage | -20…65 °C | |
operating altitude | <= 1000 m without derating > 1000...2000 m with continuous power derating of 1 % per 100 m |
Package 1 Weight | 2.106 kg | |
---|---|---|
Package 1 Height | 1.450 dm | |
Package 1 width | 2.100 dm | |
Package 1 Length | 2.350 dm |
