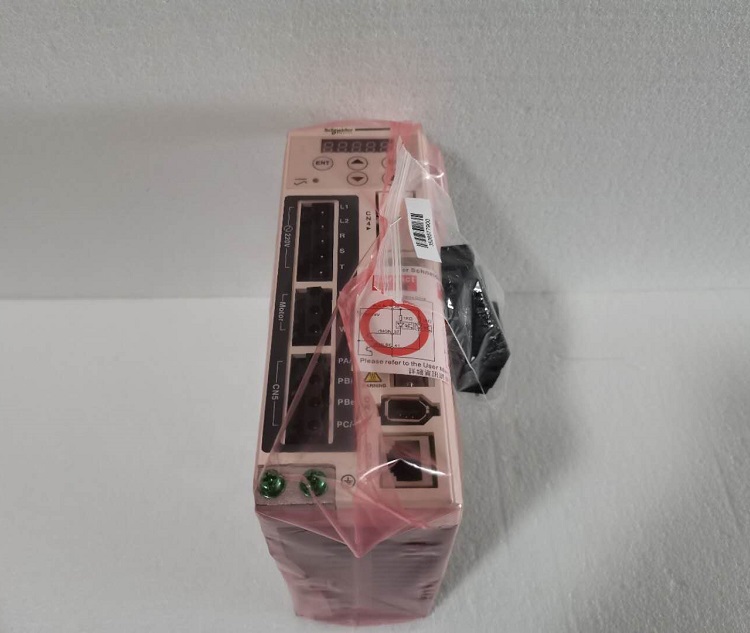

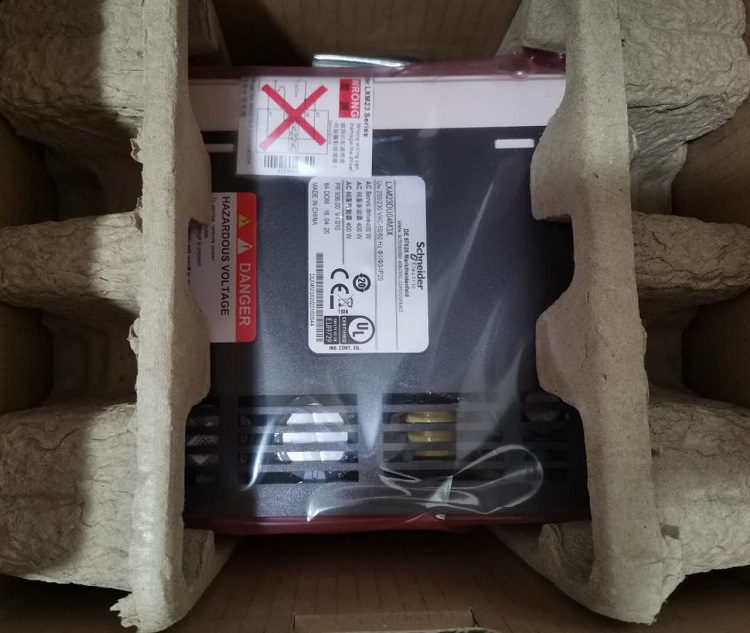

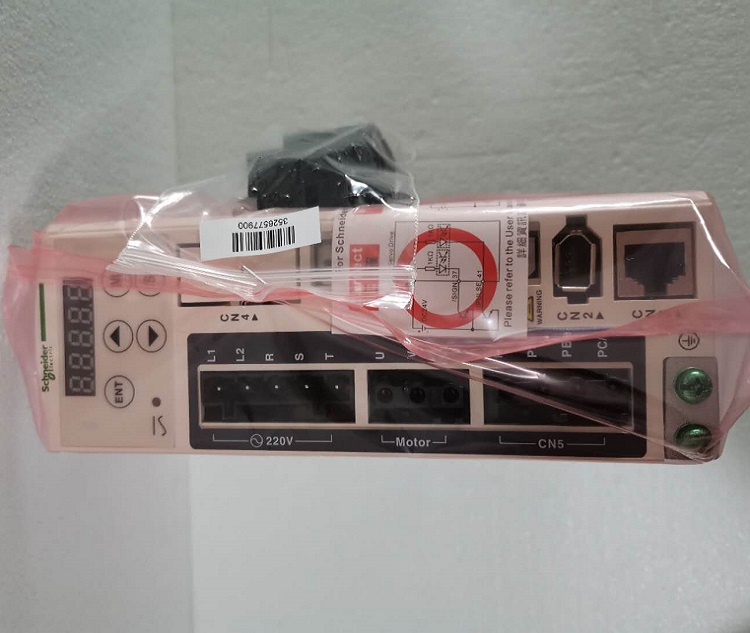

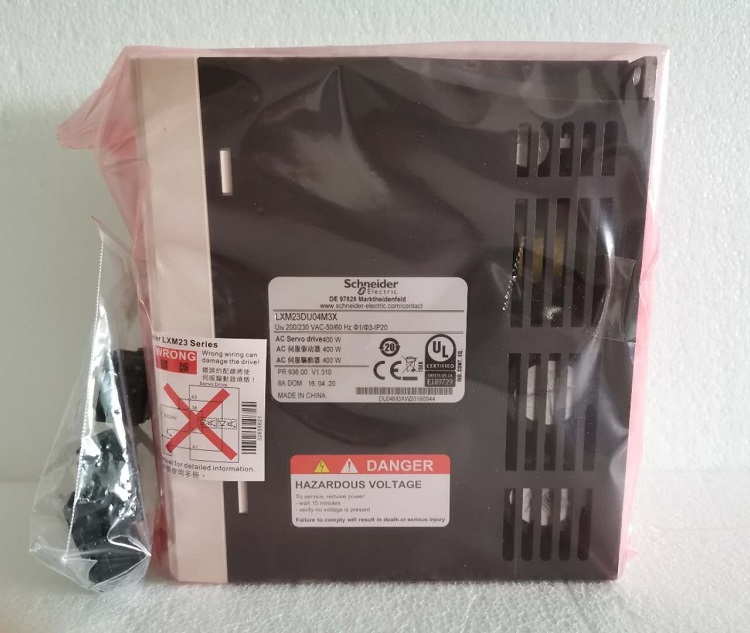

Schneider electric LXM23DU04M3X Lexium 23 IO 400w servo drive

Inquire Now Next Product

product description

Main
range of product	Lexium 23 Plus
product or component type	Motion servo drive
device short name	LXM23

Complementary
format of the drive	Book
network number of phases	Single phase 3 phases
[Us] rated supply voltage	220 V single phase (tolerance: - 10...15 %) 220 V 3 phases (tolerance: - 20...15 %)
supply voltage limits	200…255 V single phase 170…255 V 3 phases
supply frequency	50/60 Hz - 5...5 %
network frequency limits	47.5…63 Hz
continuous output current	2.6 A
continuous power	400 W at 220 V
nominal power	0.4 kW at 220 V
maximum leakage current	3.5 mA
output voltage	<= power supply voltage
electrical isolation	Between power and control
type of cable	Twisted shielded pairs cable (single or double) (temperature: 0…55 °C)
electrical connection	Terminal, clamping capacity: 1.3 mm², AWG 16 (L1-L2) Terminal, clamping capacity: 2.1 mm², AWG 14 (R, S, T) Terminal, clamping capacity: 0.82 mm², AWG 18 (U, V, W) Terminal, clamping capacity: 2.1 mm², AWG 14 (PA/+, PBe)
tightening torque	PE (ground): 1.4 N.m
discrete input number	8 programmable discrete input(s)
discrete input type	Programmable (CN1 terminals)
discrete input voltage	12...24 V DC for logic
discrete input logic	Positive or negative (CN1)
discrete output number	5
discrete output type	Logic output(s) (CN1)12...24 V DC
discrete output voltage	12...24 V DC
discrete output logic	Positive or negative (CN1)
analogue input number	2
absolute accuracy error	0.01 %
analogue input type	V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm T_REF voltage analog input: - 10...10 V, impedance: 10 kOhm
control signal type	Servo motor encoder feedback
protection type	Against reverse polarity: inputs signal Against short-circuits: outputs signal Overcurrent: motor Overvoltage: motor Undervoltage: motor Overheating: motor Overload: motor Overspeed: motor Abnormal pulse control command: drive
communication interface	Modbus, integrated
connector type	RJ45 (CN3) for Modbus
method of access	Slave
physical interface	2-wire RS485 multidrop for Modbus
transmission rate	Configurable
status LED	1 LEDcharge LED:
signalling function	Servo status and fault codes five 7-segment display units
marking	CE
type of cooling	Natural convection
operating position	Vertical
width	60 mm
height	162 mm
depth	146 mm
net weight	1.7 kg

Environment
EMC filter	Without EMC filter
electromagnetic compatibility	EMC immunity level 3 conforming to EN/IEC 61000-4-2 EMC immunity level 3 conforming to EN/IEC 61000-4-3 EMC immunity level 3 conforming to EN/IEC 61000-4-5 EMC immunity level 4 conforming to EN/IEC 61000-4-4 EMC immunity with additional EMC filter conforming to EN/IEC 61800-3 environments 1 and 2 Conducted and radiated emissions with additional EMC filter conforming to EN/IEC 61800-3 environments 1 and 2 category C2, C3
standards	EN/IEC 61800-5-1
product certifications	CULus 508 C-Tick
IP degree of protection	On upper part: IP20 (without protective cover) On upper part: IP41 (with protective cover)
vibration resistance	0.075 mm peak to peak (f= 10…57 Hz) conforming to IEC 60068-2-6 1 gn (f= 57…150 Hz) conforming to IEC 60068-2-6
shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
relative humidity	Class 3K3 (5 to 85 %) without condensation or dripping water conforming to IEC 60721-3-3
ambient air temperature for operation	0…55 °C conforming to UL
ambient air temperature for storage	-20…65 °C
operating altitude	<= 1000 m without derating > 1000...2000 m with continuous power derating of 1 % per 100 m

Packing Units
Package 1 Weight	1.520 kg
Package 1 Height	1.630 dm
Package 1 width	2.000 dm
Package 1 Length	2.290 dm
