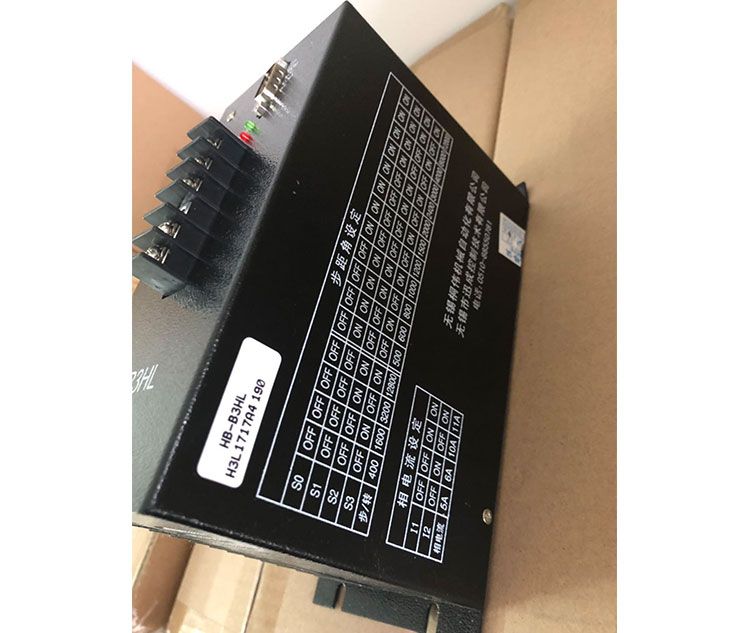

Bag Making Machine HB-B3HL Three Phase Hybrid Step Motor Driver

product description

Three Phase Hybrid Step Motor Driver HB-B3HL for Bag Making Machine

Model number: HB-B3C (Latested version HB-B3HL)

Product certification: CE

Material: original imported from Mitsubishi module

Nominal voltage: 220V

Power: 1.5

Respone speed rate: 1000

Apply to the machine: 110BYG, 130BYG series machine.

Suitable range: bag making machine.

Customized: yes


Features:

HB-B3HL motor driver is adpot oringinal imported Germany module. Can be high speed chopping, Constant current driver, good perfermance of anti-interfernce.; control signal and inner signal, realize optoelectronic isolation, it has the function of self-protection when it is over-current, over-voltage, overheating, etc. Operate steadily, good reliability, 8A drive all of the following 110BYG, 130BYG series three-phase hybrid stepper motors.


1. Power supply: AC220V

2. The maximum current per phase drive configured according to the distribution of the motor

3. AC servo motor current control mode, accurate current output, with full-band output sine wave control, the stepper motor running performance close to the AC servo motor.

4. Drive Performance minimal dependence on the motor, the motor can be different parameters to obtain excellent performance

5. Subdivision with a variety of special subdivision requirements can be customized

6. Have an offline (FREE) control signal (WF input)

7. Adaptive motor: 110BYG, 130BYG series stepper motor.
