Porcheson MS500 MS210A control system

product description

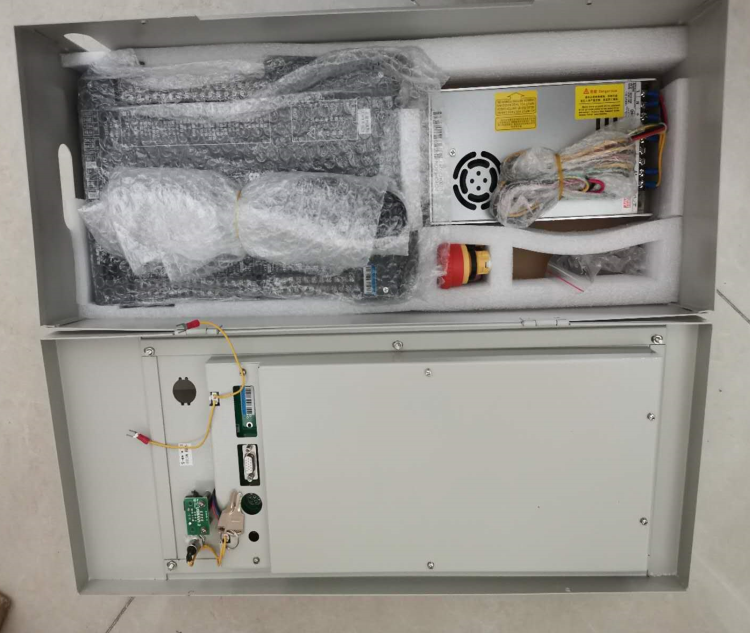

Porcheson MS500 MS210A control system replace PS660AM MS210A controller 7 inches display.

ms500 with 7" 8" 10.2" lcd

ms700 with 7" 8" 10.2" lcd


MS500  specification   :
1. PID   (Proportion Integration Differentiation) self-learning temperature control,   (4+1) sections of temperature
2.   Multi-stroke control , position switch/3-path 12bit A/D electronic ruler   input
3. 999 groups   mould data storage, mold description input can adopt Chinese/English with   real-time operational help
4.   Multi-language selected, display dynamically in real time with 999 group SPC   track record
5. Input&   output point with overload and short-circuit protecting function
6. Real time   dynamically observation on output values of pressure, speed and current, no   need extra ammeters
7. Multi   security programs protected and internal security circuit controlled
8. Failure of   self-detection, alarm display and voice prompt function
9. 2 path   standard 16bit D/A ratio output with max current 3000 mA
10. 2 path   standard ratio output 0 ~ 10V   D/A
11. DC24V   input 24 point /output 24 point, relay output 9 point
12. Could   configure various universal keyboards:7.0, 8.0, 10.2 inch TFT(optional)


Operate environmen
Operate   temperature: -10°C ~50°C
Storage   temperature: -20°C~60°C
Relative humidity: 10%~95% (non   condensation state)
