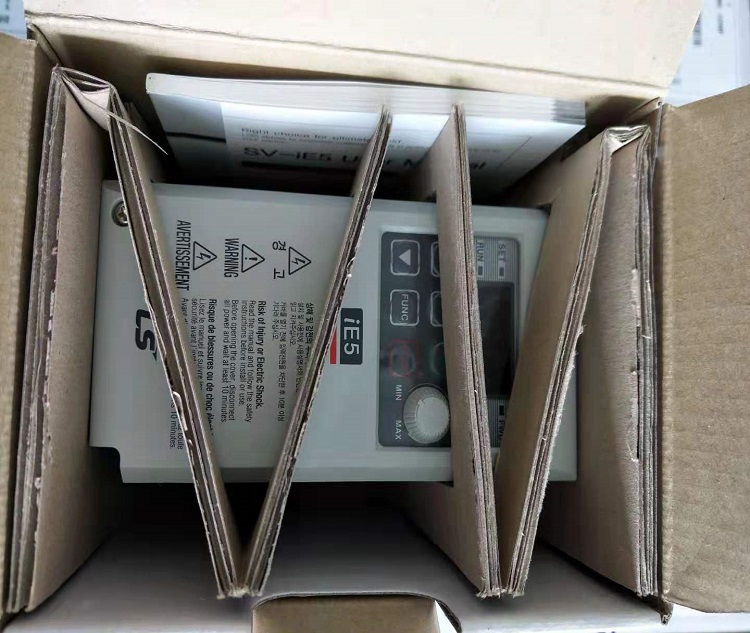

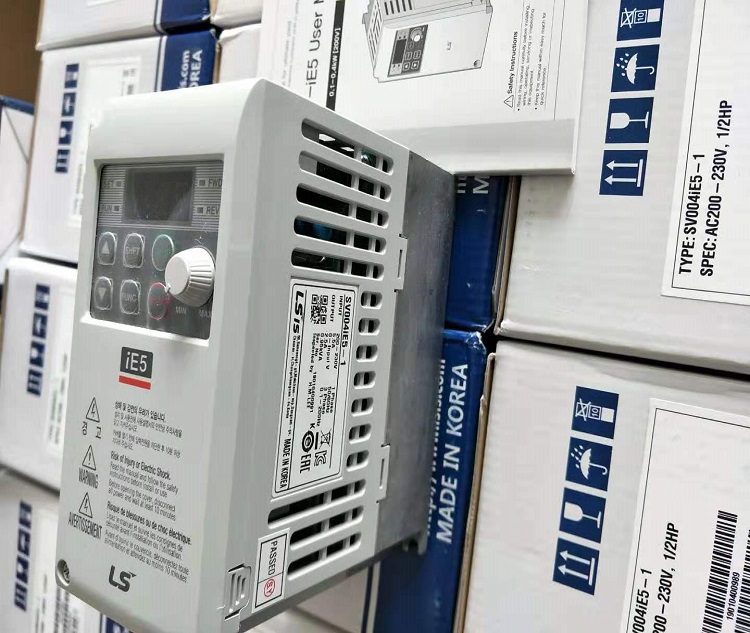

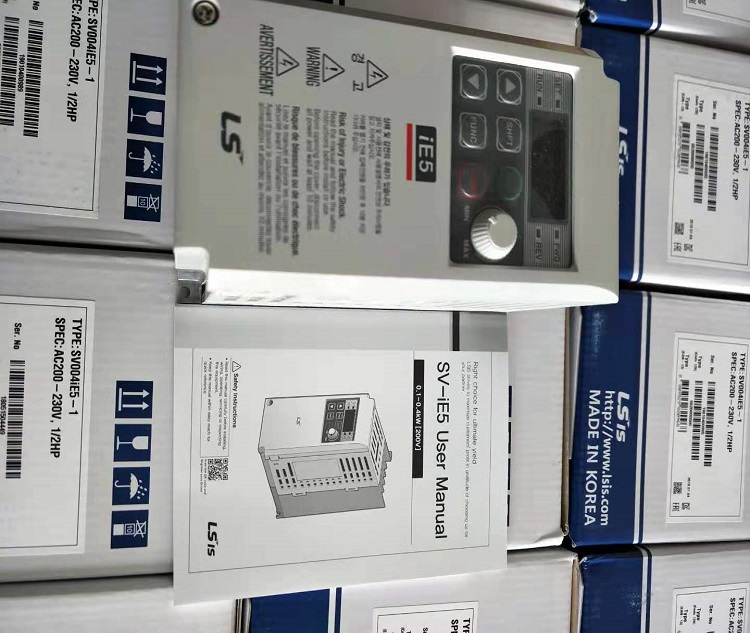

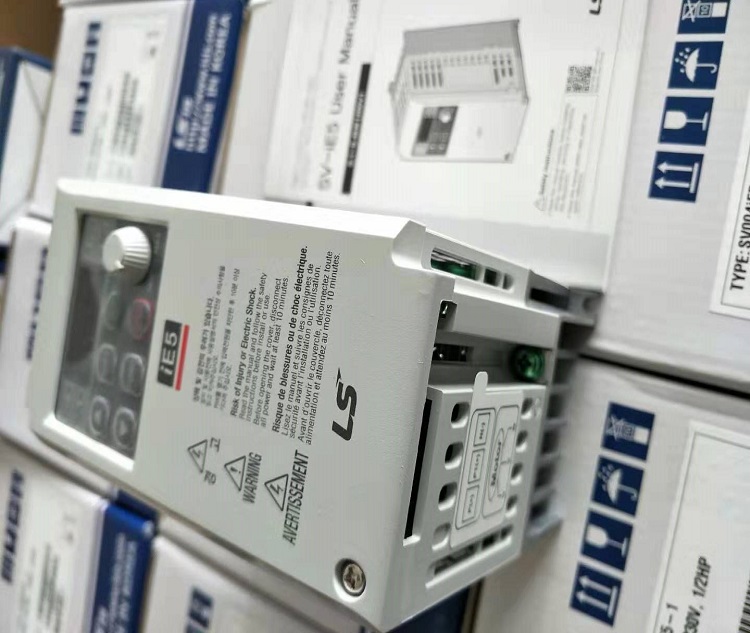

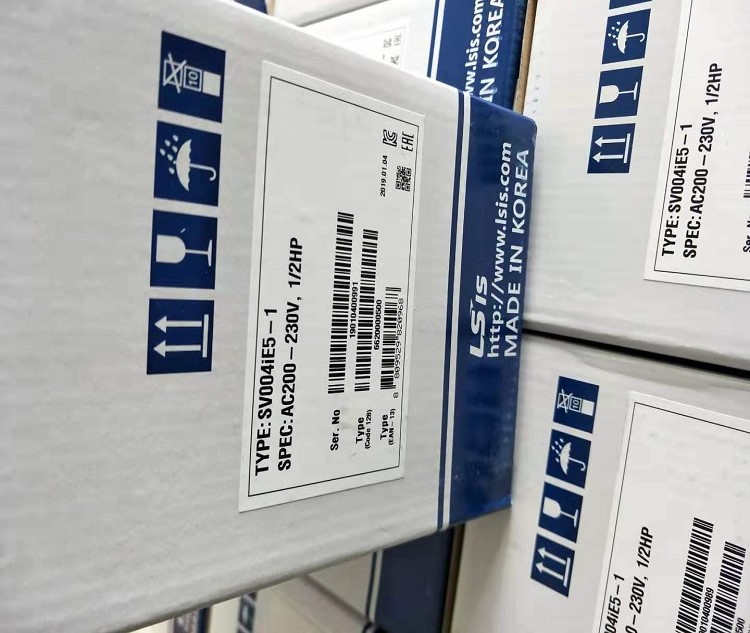

LS IS5 series inverter SV001iE5-1 SV002iE5-1 SV004iE5-1
LS Inverter IE5 series
Features
- LS Inverter IE5 series has smaller micro size.
- Easy operation and control.
- PI Control.
- LS Inverter IE5 series has modbus communication interface (optional).
- PNP, NPN dual control Signal..
- Parameter copy function.
- LS Inverter IE5 series is optimum solution for small size motor control.
Specifications
Power supply | 1 phase 200 ~ 230; 3 phase 200 ~ 230 VAC (±10%) |
Rated capacity | 0.1-0.4kW (200 - 230 V) |
Rated current | 0.8-2.5 A (1 phase 200 ~ 230), 0.8-3.0 A (3 phase 200 ~ 230 VAC) |
Output frequency range | 0 - 200Hz |
Starting Torque | - |
Overload current rating | 150% / 1Min |
Control Method | V/f Control; PI Control |
Braking unit | - |
Input | Multifunction input terminal, frequency set power, frequency set(Volt/Current), frequency set common terminal |
Ouput | Display; multifunctional relay |
Protection Function | Over voltage, Under voltage, Over current, Ground fault, Drive overload, Overload trip, Overheat, Condensor overload, Phase loss overload protection, Frequency command loss, Hardware fault |
Main Control Functions | - |
Communication | RS-485 |
Peripheral Devices and Options | AC input fuse, AC Reactor, DC Reactor. |
Degree of protection | IP20 (open type) |
