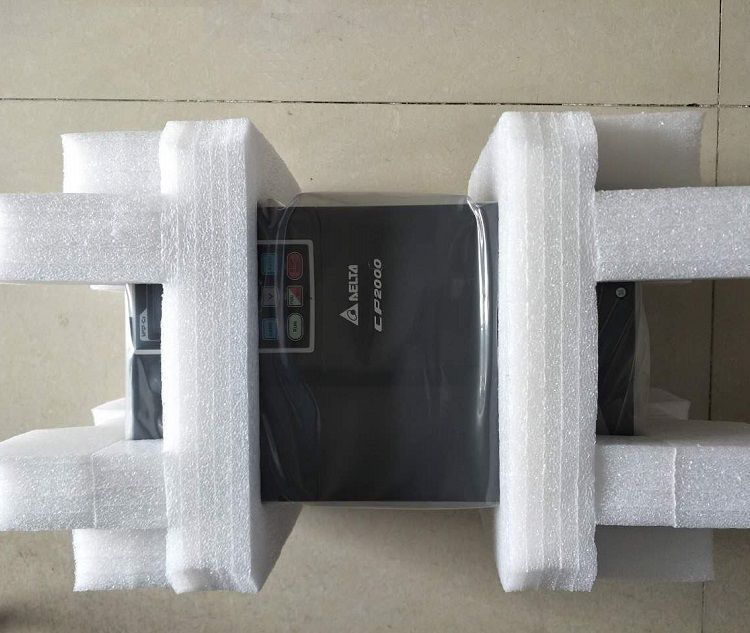

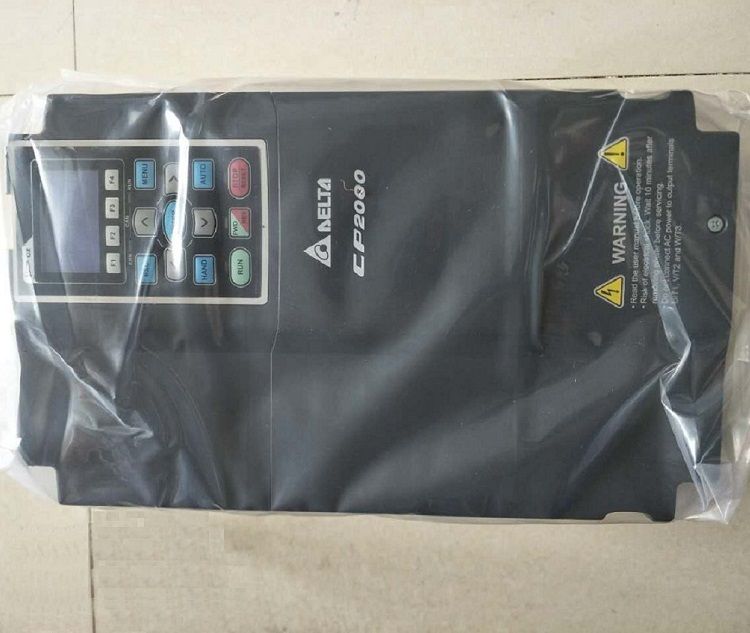

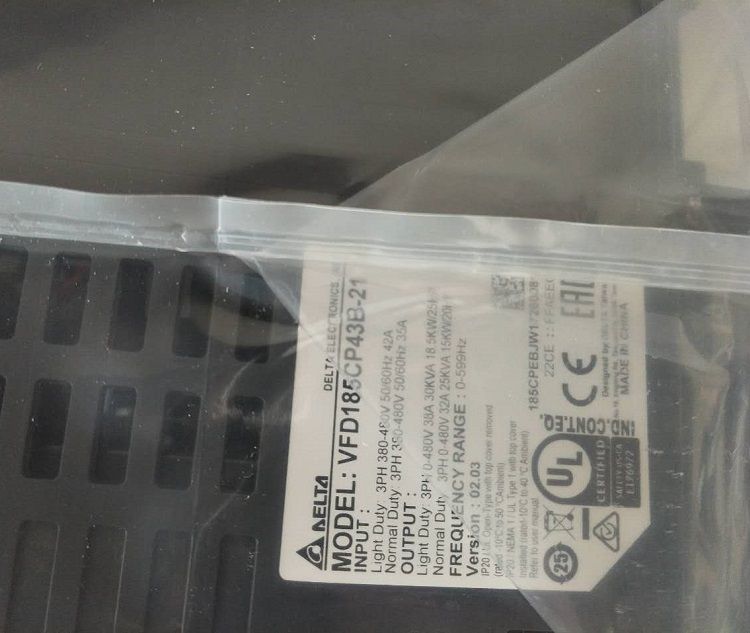

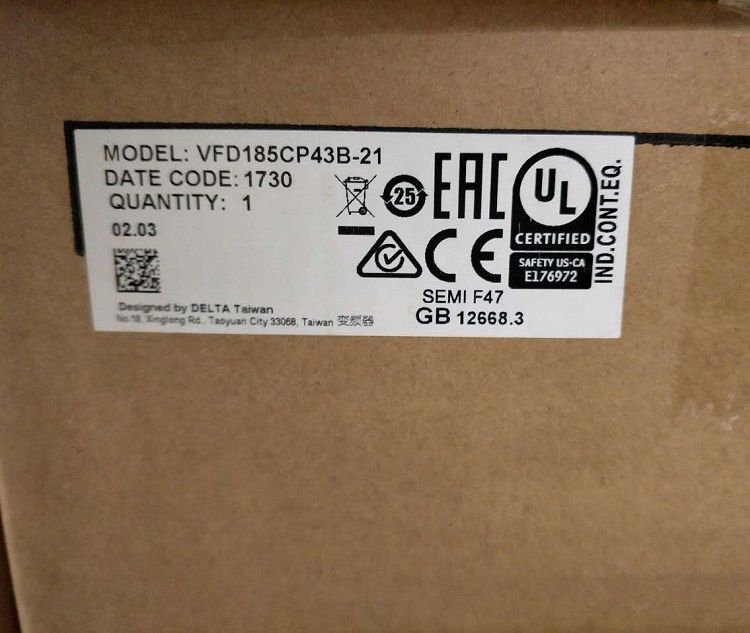

Low cost DELTA INVERTER VFD185CP43B-21 CP2000 Series 18.5KW for fan water pump

 DELTA INVERTER CP2000 Series

Features

1.LCD keypad - An easy-to-use text panel with TP Editor software allows users to self-defne the main page screen.

2.Quick setting functions to support self-defned parameter groups and parameter duplication for fast and easy installation.

3.Flexible extension and easy maintenance.

4.High-speed communications include BACnet and MODBUS.Optional communication cards are available upon purchase: PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP and CANopen.

5.Extended life cycle.

6.Enhanced conformal coating on PCBs for superior durability in critical environments.

7.Fire mode and bypass functions: continuous pressure to extract smoke when emergencies occur.

8.Multi-pumps synchronous control of up to 8 motors at one time and provides fxed amount and fxed time circulation control.

9.Built-in 10K steps PLC programming capacity and Real Time Clock (RTC).

10.Long life design and life monitoring of important parts.

11.Best thermal design, can be operated at 50 ℃ week temperature environment, automatically adjust the output rating, to maintain the inverter high-performance work.

12.Various mode for fans and pumps.The applications including PID control,sleep/wake up functions,skip frequency and flying start.

 Application:

Textile machines, extruders, packaging, drawing machines and other industrial machinery and fan pumps, central air conditioning, boilers, water treatment and other projects in the field.

VFD CP2000 Series  230V  3  Phase

VFD007CP23A -21      0.75kW(1.0HP)         VFD015CP23A-21       1.5kW(2.0HP)

VFD022CP23A -21      2.2kW(3.0HP)           VFD037CP23A -21       3.7kW(5.0HP)

VFD055CP23A -21      5.5kW(7.5HP)           VFD075CP23A -21       7.5kW(10HP)

VFD110CP23A -21      11kW(15HP)             VFD150CP23A -21       15kW(20HP)

VFD185CP23A -21      18.5kW(25HP)          VFD220CP23A -21        22kW(30HP)

VFD300CP23A -21      30kW(40HP)             VFD370CP23A -00       37kW(50HP)

VFD450CP23A -00      45kW(60HP)             VFD550CP23A -00       55kW(75HP)

VFD750CP23A -00      75kW(100HP)           VFD900CP23A -00      90kW(120HP)

VFD CP2000 Series  460V   3  Phase

VFD007CP43A  -21       0.75kW(1.0HP)       VFD007CP4EA-21        0.75kW(1.0HP)

VFD015CP43B  -21       1.5kW(2.0HP)         VFD015CP4EB-21        1.5kW(2.0HP)

VFD022CP43B  -21       2.2kW(3.0HP)        VFD022CP4EB-21         2.2kW(3.0HP)

VFD037CP43B  -21       3.7kW(5.0HP)        VFD037CP4EB-21         3.7kW(5.0HP)

VFD040CP43A  -21       4kW(5.5HP)           VFD037CP4EA-21         3.7kW(5.0HP)

VFD055CP43B  -21       5.5kW(7.5HP)        VFD055CP4EB-21         5.5kW(7.5HP)

VFD075CP43B  -21       7.5kW(10HP)         VFD075CP4EB-21         7.5kW(10HP)

VFD110CP43B  -21       11kW(15HP)           VFD110CP4EB-21        11kW(15HP)

VFD150CP43B  -21       15kW(20HP)          VFD150CP4EB-21        15kW(20HP)

VFD185CP43B  -21       18.5kW(25HP)       VFD185CP4EB-21        18.5kW(25HP)

VFD220CP43A  -21       22kW(30HP)          VFD220CP4EB-21         22kW(30HP)

VFD300CP43B  -21       30kW(40HP)          VFD300CP4EB-21         30kW(40HP)

VFD370CP43B -21       37kW(50HP)           VFD370CP4EB-21         37kW(50HP)

VFD450CP43S -21       45kW(60HP)

VFD550CP43S  -21       55kW(75HP)

VFD1100CP43A  -21     110kW(150HP)

VFD1320CP43B  -21     130kW(175HP)

VFD1600CP43A  -21     160kW(215HP)

VFD1850CP43B  -21     185kW(250HP)

VFD2200CP43A  -21     220kW(300HP)

VFD2800CP43A  -21     280kW(375HP)
