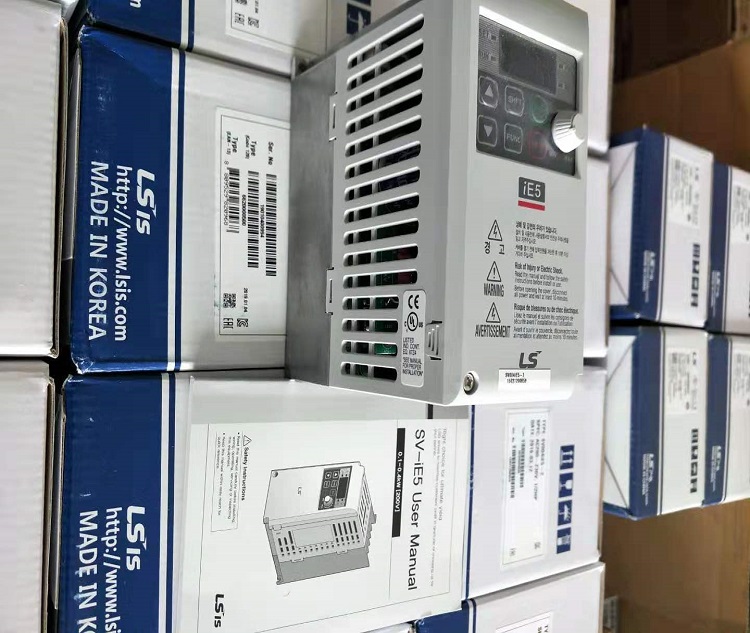

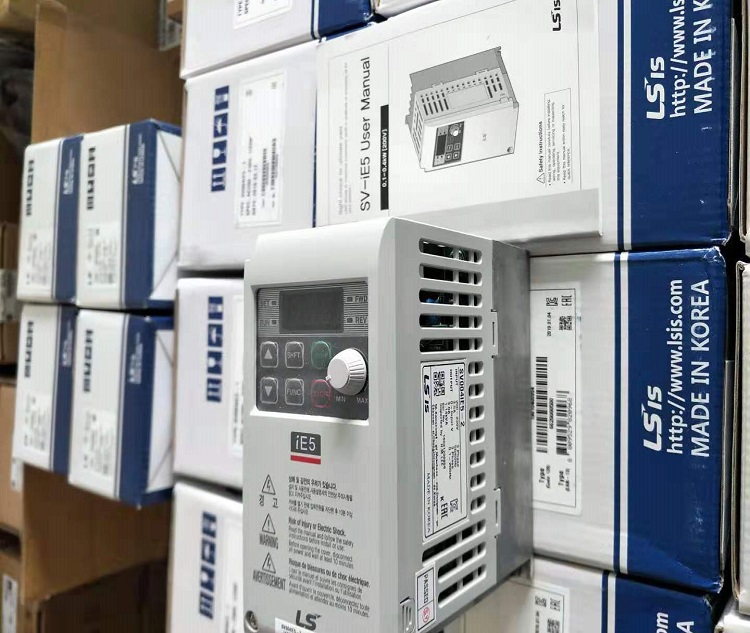

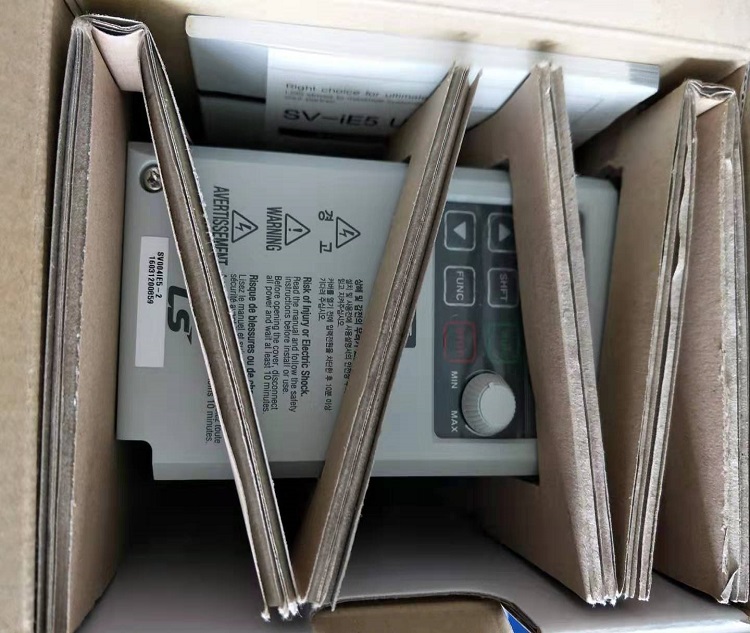

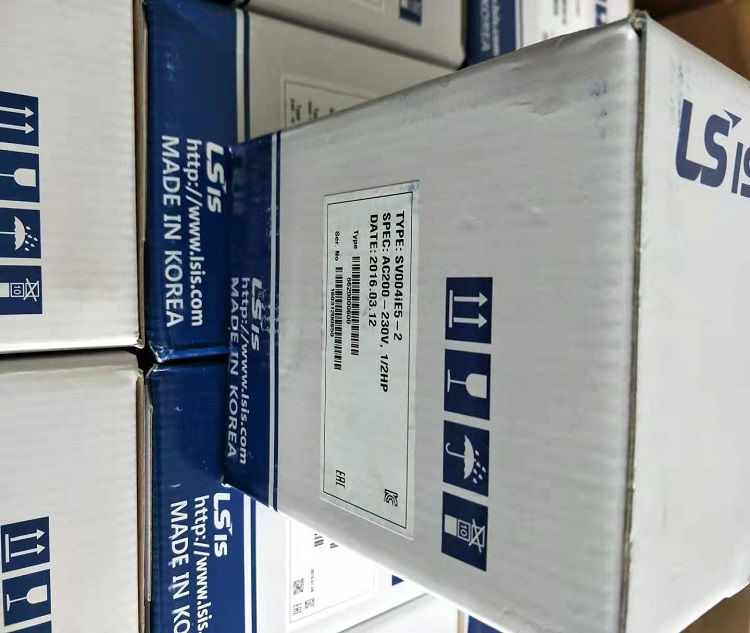

LS INVERTER SV004IE5-2 SV series

product description


LS Inverter IE5 series

Features

LS Inverter IE5 series has smaller micro size.

- Easy operation and control.

- PI Control.

LS Inverter IE5 series has modbus communication interface (optional).

- PNP, NPN dual control Signal..

- Parameter copy function.

LS Inverter IE5 series is optimum solution for small size motor control.

Specifications

Power   supply

1 phase 200   ~ 230; 3 phase 200 ~ 230 VAC (±10%)

Rated   capacity

0.1-0.4kW   (200 - 230 V)

Rated   current

0.8-2.5 A   (1 phase 200 ~ 230), 0.8-3.0 A (3 phase 200 ~ 230 VAC)

Output   frequency range

0 - 200Hz

Starting   Torque

-

Overload   current rating

150% / 1Min

Control   Method

V/f   Control; PI Control

Braking   unit

-

Input

Multifunction   input terminal, frequency set power, frequency set(Volt/Current), frequency   set common terminal

Ouput

Display;   multifunctional relay

Protection   Function

Over   voltage, Under voltage, Over current, Ground fault, Drive overload, Overload   trip, Overheat, Condensor overload, Phase loss overload protection, Frequency   command loss, Hardware fault

Main   Control Functions

-

Communication

RS-485

Peripheral   Devices and Options

AC input   fuse, AC Reactor, DC Reactor.

Degree of   protection

IP20 (open   type)
