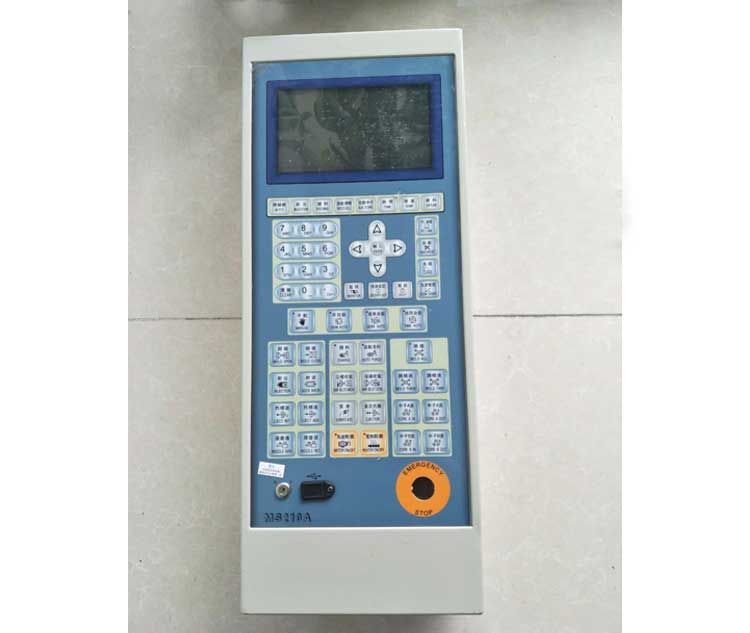

Porcheson Injection molding machine controller PS660AM

product description

Description:

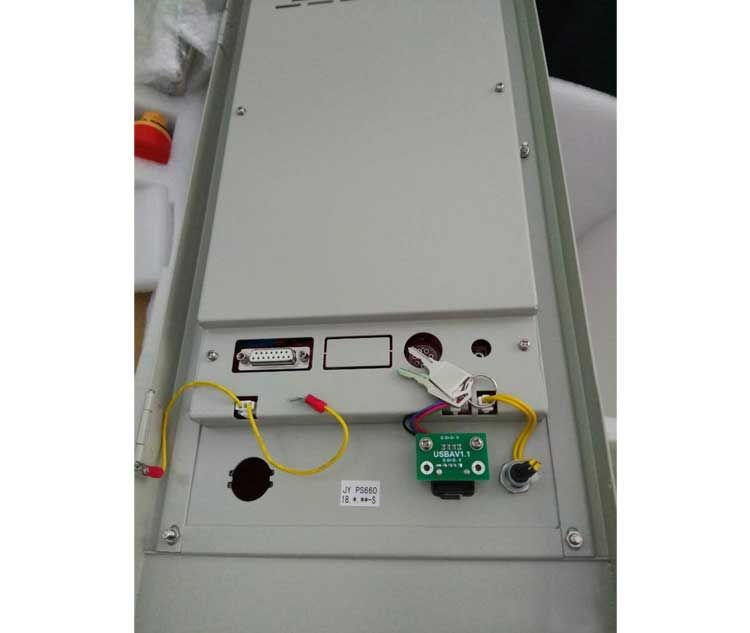

Package contain :Host computer( I/O board), Keyboard( operation panel) , Power supply, Motor Electic-heating board,Message cable, user manual


We offer whole serie controller for moldering machina and tranducer:

PS660AM/KC118T   PS860AM /KC118T  PS960AM /TH118T

PS660AM/MS210  PS860AM /TH118  PS960AM /MF118

KTC-50mm KTC-75mm KTC-100mm(From 50mm to 700cm)

LWH-100  LWH 150 LWH (From 100 to 750mm)


PS660AM  specification :

1. PID (Proportion Integration Differentiation) self-learning temperature control, (4+1) sections of temperature

2. Multi-stroke control , position switch/3-path 12bit A/D electronic ruler input

3. 999 groups mould data storage, mold description input can adopt Chinese/English with real-time operational help

4. Multi-language selected, display dynamically in real time with 999 group SPC track record

5. Input& output point with overload and short-circuit protecting function

6. Real time dynamically observation on output values of pressure, speed and current, no need extra ammeters

7. Multi security programs protected and internal security circuit controlled

8. Failure of self-detection, alarm display and voice prompt function

9. 2 path standard 16bit D/A ratio output with max current 3000 mA

10. 2 path standard ratio output 0 ~ 10V D/A

11. DC24V input 24 point /output 24 point, relay output 9 point

12. Could configure various universal keyboards:7.0, 8.0, 10.2 inch TFT(optional)
