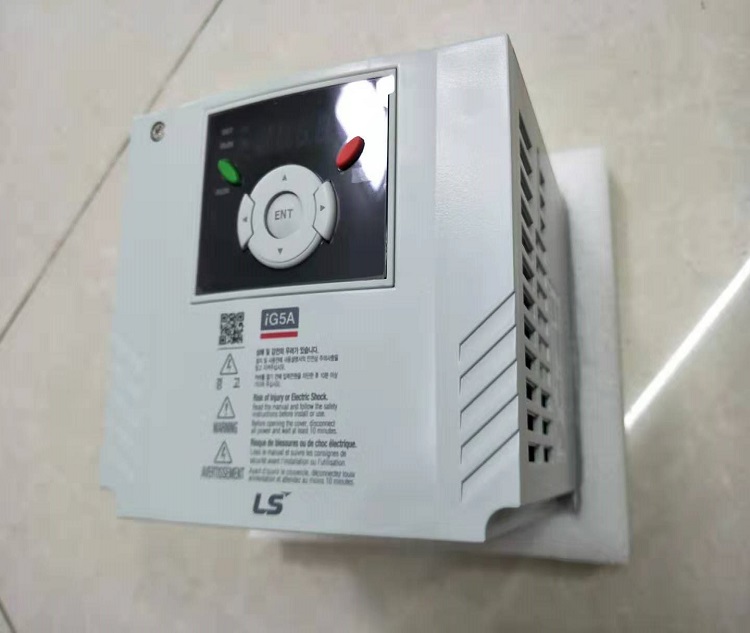

LS SV040iG5A-4 AC Drive Inverter 3 Phase 5.4HP 4KW 380~480V
Product Description
Place of Origin:South Korea
Brand Name: LS
Model Number: SV040IG5A-4
Theory: Optical Sensor
Usage: Speed Sensor
Output: Switching Transducer
LS SV040iG5A-4 AC Drive Inverter 3 Phase 5.4HP 4KW 380~480V
Features:
*Selectable V/f, sensorless vector control
*Motor parameter Auto-tuning
*Powerful torque at overall speed range
*0.1 ~ 400Hz frequency output
*-15% ~ +10% input voltage margin
*Fault history: Last 5 faults
*0~10Vdc / -10 ~ +10Vdc analog input
*IP20 enclosure, UL Type 1 (Option)
*Selectable manual/automatic torque boost
*Selectable PNP/NPN input signal
*2nd motor control and parameter setting
*Built-in Dynamic braking transistor as standard
*Enhanced process PID control
*Built-in RS485 (LS Bus / Modbus RTU) communication
*Cooling fan On/Off control & Easy change
*Remote control using external keypad * RJ45 cable(Optional)
*Upgraded functions:
Sleep & Wake-up (Energy savings)
KEB(Kinetic Energy Buffering) protection
Low leakage PWM algorism
*Monitoring & commissioning PC based software tool (Drive View)
Specifications:
3 Phase 400V
Specification - 230V Class | ||||||||||||||||||||||||
SV***iG5A- 4 | 004 | 008 | 015 | 022 | 037 | 040 | 055 | 075 | 110 | 150 | 185 | 220 | ||||||||||||
Motor Rating | [HP] | 0.5 | 1 | 2 | 3 | 5 | 5.4 | 7.5 | 10 | 15 | 20 | 25 | 30 | |||||||||||
[kW] | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 4.0 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | ||||||||||||
Output ratings | Capacity [kVA] | 0.95 | 1.9 | 3.0 | 4.5 | 6.1 | 6.9 | 9.1 | 12.2 | 18.3 | 22.9 | 29.7 | 34.3 | |||||||||||
FLA[A] | 1.25 | 2.5 | 4 | 6 | 8 | 9 | 12 | 16 | 24 | 30 | 39 | 45 | ||||||||||||
Frequency | 0.1 ~ 400Hz | |||||||||||||||||||||||
Voltage | 3 Phase 380 ~ 480 V | |||||||||||||||||||||||
Input ratings | Voltage | 3 Phase 380~480V (+ 10%, - 15%) | ||||||||||||||||||||||
Frequency | 50 ~ 60 Hz (± 5%) | |||||||||||||||||||||||
Cooling Method | Self Cooling | Forced Aire Cooling | ||||||||||||||||||||||
Weight(kg) | 0.76 | 0.77 | 1.12 | 1.84 | 1.89 | 1.89 | 3.66 | 3.66 | 9.0 | 9.0 | 13.3 | 13.3 | ||||||||||||
