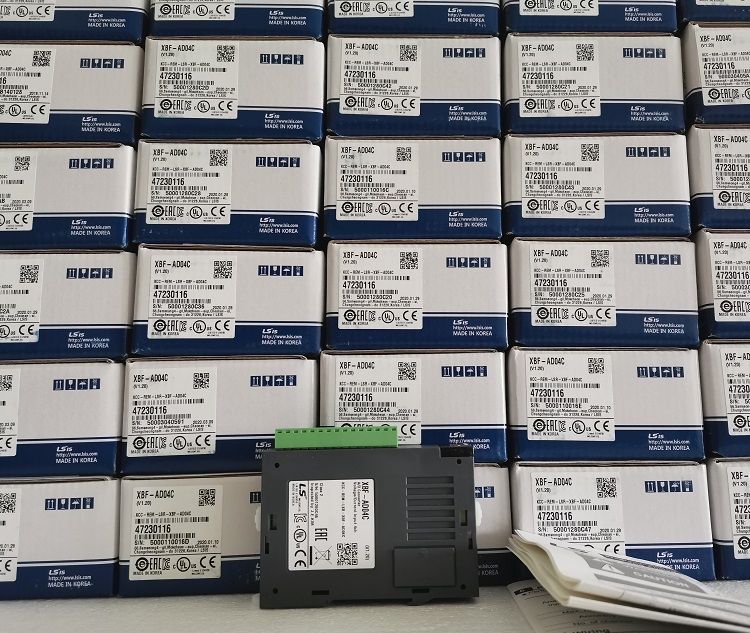

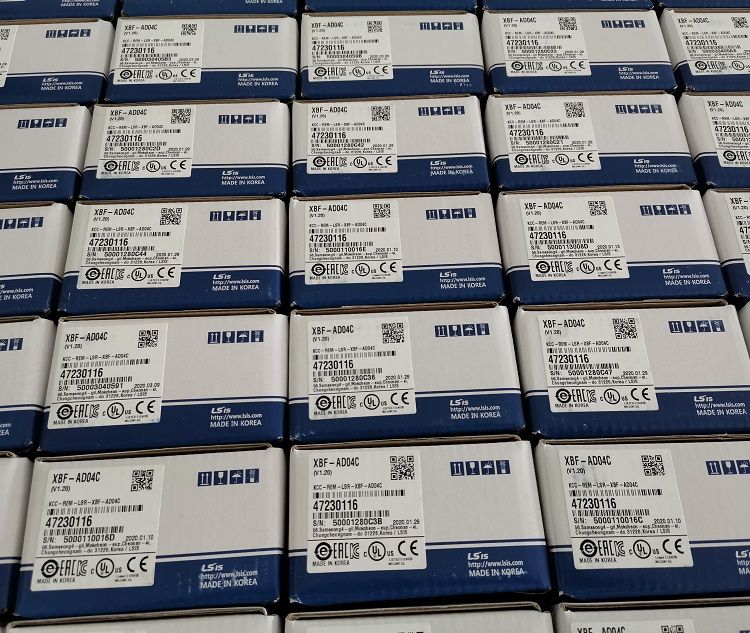

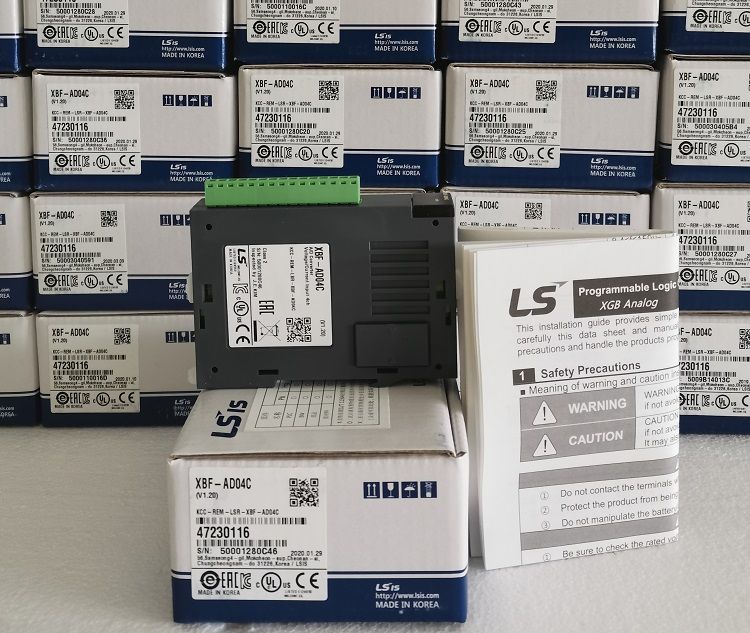

LS PLC XBF-AD04C Expansion module ls module
product description
| GENERAL SPECIFICATIONS | ||
| Input | ||
| Number of Channels | 4 | |
| External Current Consumption | 100mA @ 24VDC/point | |
| Internal Current Consumption | 105mA | |
| Range | Voltage | 1-5VDC, 0-5VDC, 0-10VDC, -10 to 10VDC (Input resistance: 1MΩ min.) |
| Current | 4 to 20mA, 0 to 20 mA (Input resistance 250Ω) | |
| Signal Resolution | 14 bit | |
| Unsigned Value | 0-16000 | |
| Signed Value | -8000 to 8000 | |
| Max Resolution | Voltage | 0.250mV (1-5V), 0.3125mV (0-5V) 0.625mV (0-10V), 1.250mV (±10V) |
| Current | 1.0µA (4-20mA), 1.25µA (0-20mA) | |
| Accuracy | ±0.3% max. | |
| Max Conversion Speed | 1ms/channel | |
| Max Absolute Input | Voltage | DC ±15V |
| Current | DC ±30mA | |
