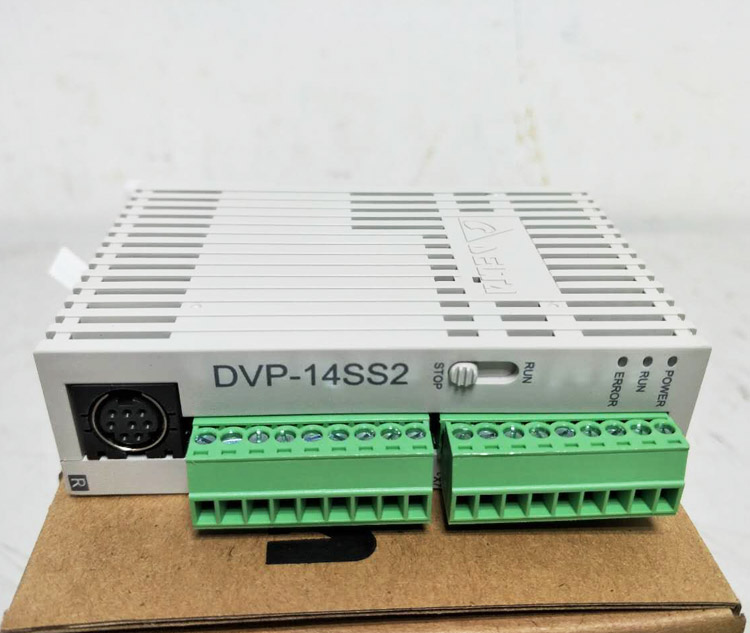

DVP14SS211R Delta SS2 series 8DI/6DO 24Vdc relay output plc communication module delta electronics
product description
Description:
CPU Units | Expansion Units and Expansion I/O Units |
Control method | Stored program | 40 I/O points | 20 I/O points |
I/O control method | Cyclic scan refreshing | 24 inputs | 12 inputs |
Program language | Ladder diagram | 16 outputs | 8 outputs |
Instructions | Approx. 500 | 2 inputs and 1 output | 8 inputs and 8 outputs |
Program capacity | 10K/5K steps | K or J thermocouple inputs | Pt or JPt inputs |
Ethernet Ports | Power Supply Units |
Connector | RJ45 | Voltage | 100 to 240VAC |
Data Rate | 10/100Base T | Operating voltage range | 85 to 264VAC |
Protocols | Modbus TCP | Power holding time | 2 ms min. |
CAN Port | Digital Outputs |
Baud Rate | 125K bps | Output Type | FET |
Length | <500 meters | Operating Frequency | 100 Hz |
Protocols | Custom protocol | On-state Current, Max | 200mA |
Analog Inputs | Pulse Inputs |
Resolution | 16-bit | Voltage Range | 12V-24V DC |
Input Range | 4~20mA | Off-state Voltage | 8V DC |
Input Type | Single ended | Typical Input Current | 5mA 10VDC |
Input Impedance | 170Ω | Input Frequency | 10KHz with filters off |
