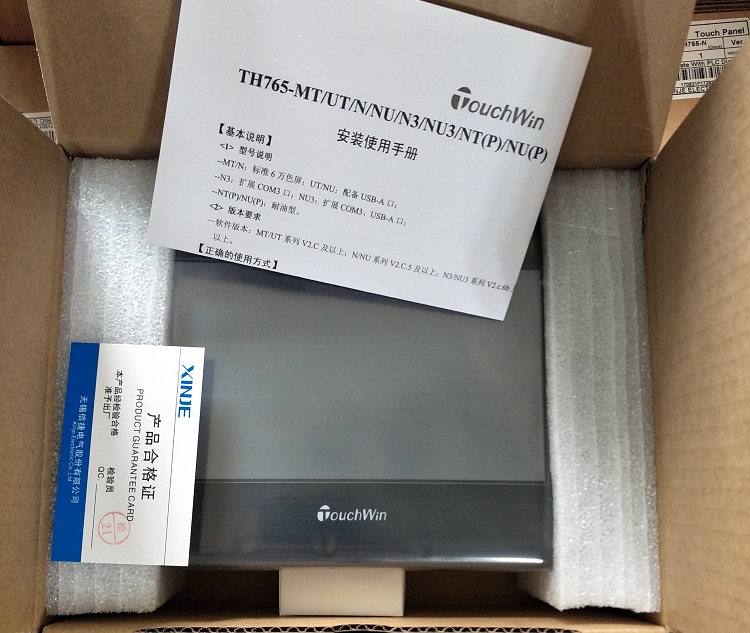

xinje Touch Screen th765-n hmi Human machine interface

product description

Product Description

XINJE  7 inch hmi touch panel Descriptions:

7 inch touch screen, streamline design   65536 true colors display, support BMP, JPEG format pictures

Rich 3D picture library can make the screen more vividly  Flexible component selection space, self-defined animation track design

Simple switch setting for changing the modes, precise touch area adjust function  Self-defined data collection and save function

Support various data process modes, such as time trend map, XY trend map…

3 USB ports can realize data duplication and transferring  Two com ports can communication independently and realize multi-THs communicate with one PLC



Item

TH765-N

Electrical

Input voltage

DC20-DC28V

Consumption current

250mA

Momentary power off allowance

< 10ms

Withstand voltage

AC1000V-10mA 1 minute(signal and time)

Insulated impedance

DC500V-about 10MΩ(signal and time)

Interface

COM1

Support RS-232/RS-485

COM2

Support RS-232/RS422/RS485

USB1

USB-A(accord with USB2.0)

USB2

USB-A(accord with USB2.0)

USB3

USB-B  (accordance with USB2.0)

Ambience

Operation temperature

0-50C degree

Reserve temperature

-20-60C degree

Humidity

20-85%(without condensation)

Withstand oscillation

10-25HZ(X, Y, Z each direction 30 minutes 2G)

Anti-jamming

Voltage noise: 1000Vp-p,pulse width1us, 1 minute

Surrounding air

No corrosive gas

Protect construction

Accord with IP65

Screen

Type

65536 true colors

Screen size

7 inch

Use life

>50000 hours, 24 hours running when surrounding temperature is 25C degree

Resolution

800*448 pixels

Contrast

Non-adjustable

Character setting

Chinese, English, Japanese, Korean and so on

Character size

Any font and size

Touch panel

4-wire resistor touch mode

Memory

Screen

128MB

 Construction

Cooling mode

Natural air cooling

Exterior dimension

205.0*151.5*48.9mm

Mounting dimension

192.0*138.5mm
