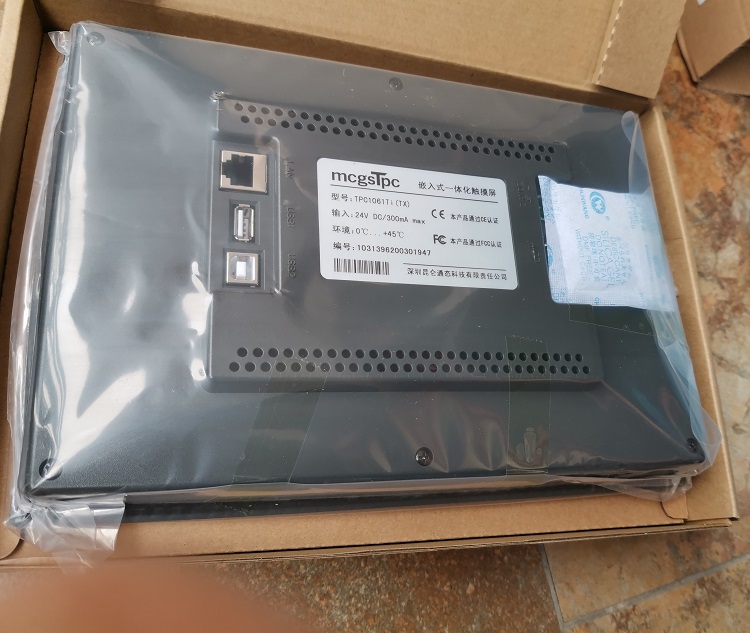

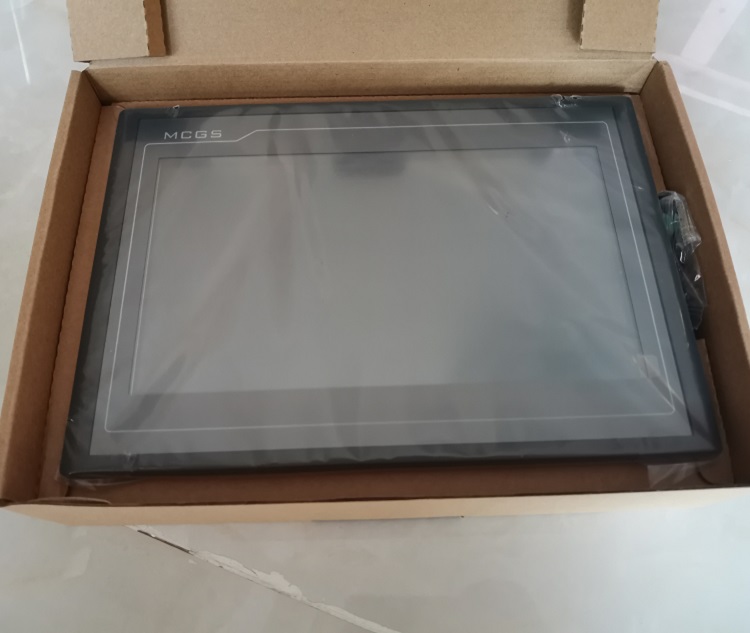

TPC1061Ti MCGS hmi touch screen 10.2 inch

product description

Product   Features


Dimensions (   in inches )

10.2 "

LCD

TFT LCD, LED   backlight

Display Color

True color,   65535 colors

Resolution

1024x600

The brightness   of the LCD screen

200cd /

Touch screen

Resistive

Power supply

24VDC

Rated Power

5W

CPUmotherboard

ARM CPU ,   600MHz

Memory

128M

Storage   devices

128M FLASH

Configuration   software

The MCGS   Embedded configuration software ( running version alarm formulation , data   storage function, save the initial value )

Environmental   conditions


Operating   Temperature

0 to 45

Operating   Humidity

5% to 90%

Storage   Temperature

-10 to 60

Vibration   frequency

10-57Hz   57-150Hz

Vibration   acceleration

0.075mm 9.8 m   / s 2

Vibration   sweep rate

Oct / min ≤ 1

Specifications


Structure

The structure   of industrial plastics

Color

Industrial   gray

Panel Size

274mm × 193mm

Cabinet   openings

261mm × 180mm

External   interface


Serial ports

com1   RS232,com2 RS485

USB

1 host and 1   client

Ethernet

10/100M

Certified   Protection


Authenticate

CE / FCC

Protection   class

IP65
